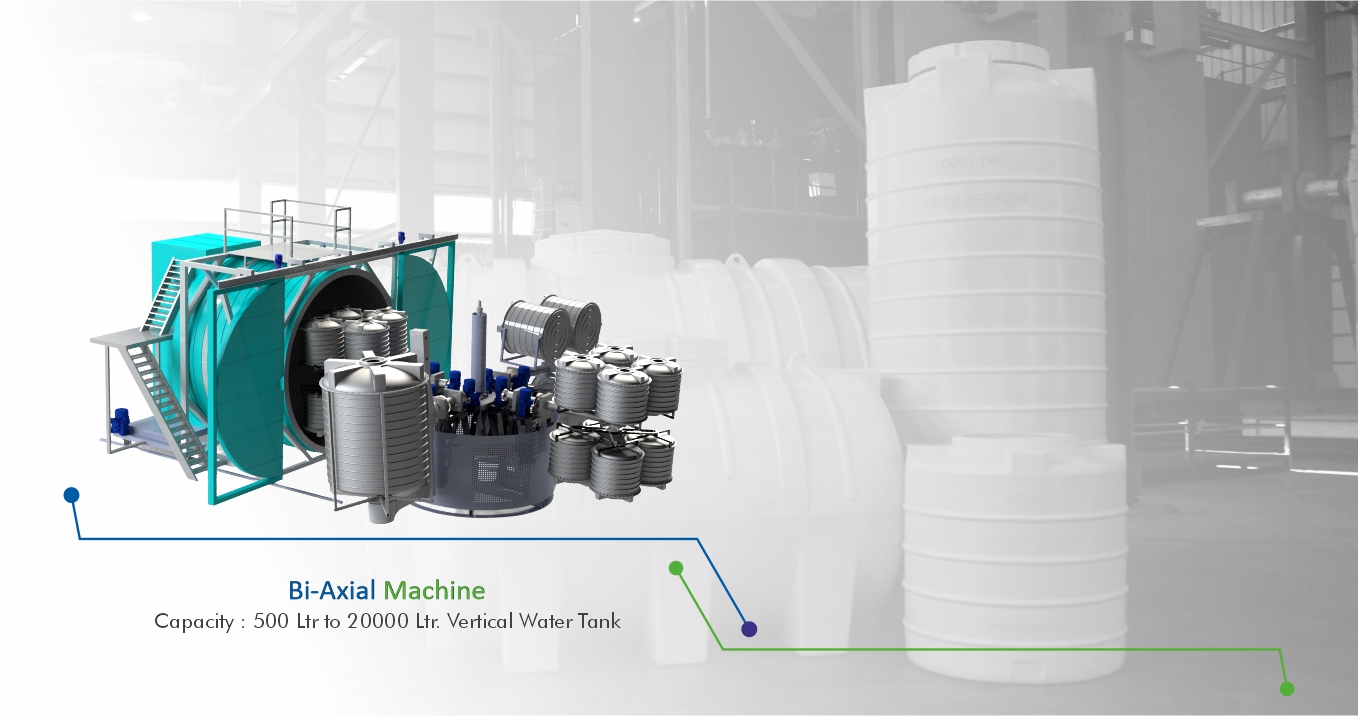

Carousel Rotomoulding Machine
Carousel Rotomoulding Machine
In the rapidly evolving landscape of polymer processing, the Carousel rotomoulding machine stands as a pinnacle of efficiency and high-volume output. Perfect Rotomould India introduces the Bi-Axial three/four arm series, engineered to synchronize heating, cooling, and loading cycles for maximum industrial productivity.
Understanding Bi-Axial Carousel Technology
A Carousel rotomoulding machine, specifically the Bi-Axial configuration, operates on a multi-station principle where arms rotate between a central oven, cooling chambers, and loading stations. Unlike batch machines, the Carousel setup ensures that while one arm is in the oven, another is cooling, and a third is being serviced. This simultaneous operation eliminates idle time, making it the most cost-effective solution for producing large-scale hollow articles such as water tanks, chemical storage vessels, and complex automotive components.
The term "Bi-Axial" refers to the dual-axis rotation of the mold, which ensures uniform material distribution across all internal surfaces. This is critical for maintaining consistent wall thickness, especially in deep-draw products or large-capacity horizontal tanks.
The Working Principle of PRI Bi-Axial Systems
Step 1: Loading
Pre-measured polyethylene powder is loaded into the high-grade steel or aluminum molds attached to the heavy-duty arms.
Step 2: Heating
The arm moves into the oven where the machine performs bi-axial rotation. Environment-friendly burners ensure precise temperature control for perfect fusion.
Step 3: Cooling & Unloading
After the heating cycle, the arm moves to the cooling station. Once solidified, the finished product is unloaded, and the cycle repeats instantly.
Salient Features of PRI Carousel Machines
Advanced PLC Controls
Integrated Programmable Logic Controllers (PLC) offer complete automation. This ensures ease of operation with minimal specialized skills required from the operator.
Heavy Load Capacity
Our machine arms are designed for heavy-duty performance, capable of carrying multiple molds simultaneously for uniform thickness and structural integrity.
Eco-Friendly Burners
High-efficiency burners reduce fuel consumption while maintaining rapid heating cycles, making our machines environmentally conscious and economical.
Industrial Applications
The versatility of the PRI Bi-Axial Carousel rotomoulding machine allows it to serve various sectors including agriculture, chemical storage, and infrastructure. Below are the primary products manufactured using this technology:
- Vertical Water Storage Tanks: From 100 liters to 20,000 liters.
- Horizontal Chemical Tanks: Robust design for industrial usage.
- Roto-Lining: Protective lining for pipes and large industrial vessels.
- Infrastructure Articles: Road barriers, dustbins, and playground equipment.
- Agricultural Products: Pesticide tanks and feeding troughs.
- Custom Industrial Articles: Complex geometries and structural parts.
Technical Specifications & Data
| Model Number | Oven Size (L x B x H) Mtrs | Floor Space (L x B x H) Mtrs |
|---|---|---|
| PRI-MOB-0100 | 13.6 x 8.4 x 5 | 3.4 x 1.8 x 3.4 |
| PRI-MOB-0300 | 16.3 x 10.3 x 5.2 | 3.4 x 2.5 x 3.4 |
| PRI-MOB-0500 | 18.4 x 12.4 x 5.2 | 3.8 x 3.0 x 3.8 |
| PRI-MOB-1000 | 22.0 x 15.2 x 6.3 | 4.5 x 3.8 x 4.5 |
| PRI-MOB-2000 | 25.6 x 16.4 x 6.9 | 5.0 x 4.0 x 5.0 |
Benefits of Choosing Perfect Rotomould India
Proven Reliability
With decades of expertise, our machines are built for longevity. We use premium grade steel and high-end electronics to ensure 24/7 operational reliability.
Global Service Support
We don't just sell machines; we provide an ecosystem of support including installation, training, and rapid spare part delivery across the globe.
Frequently Asked Questions
Request a Quote
Ready to upgrade your production facility? Connect with our technical experts today for a customized solution.
